P-92 Echo MK-II
Aeronave Leve Esportiva
AERONAVE
P-92 Echo MK-II
TECNAM
P-92 Echo MK-II

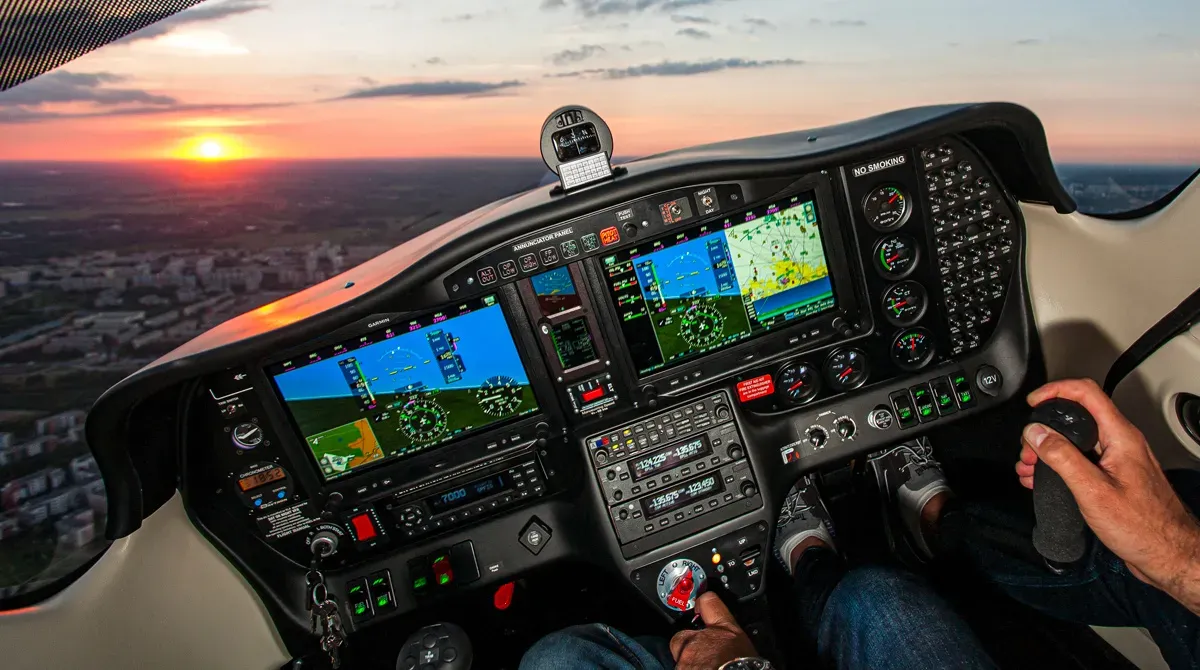

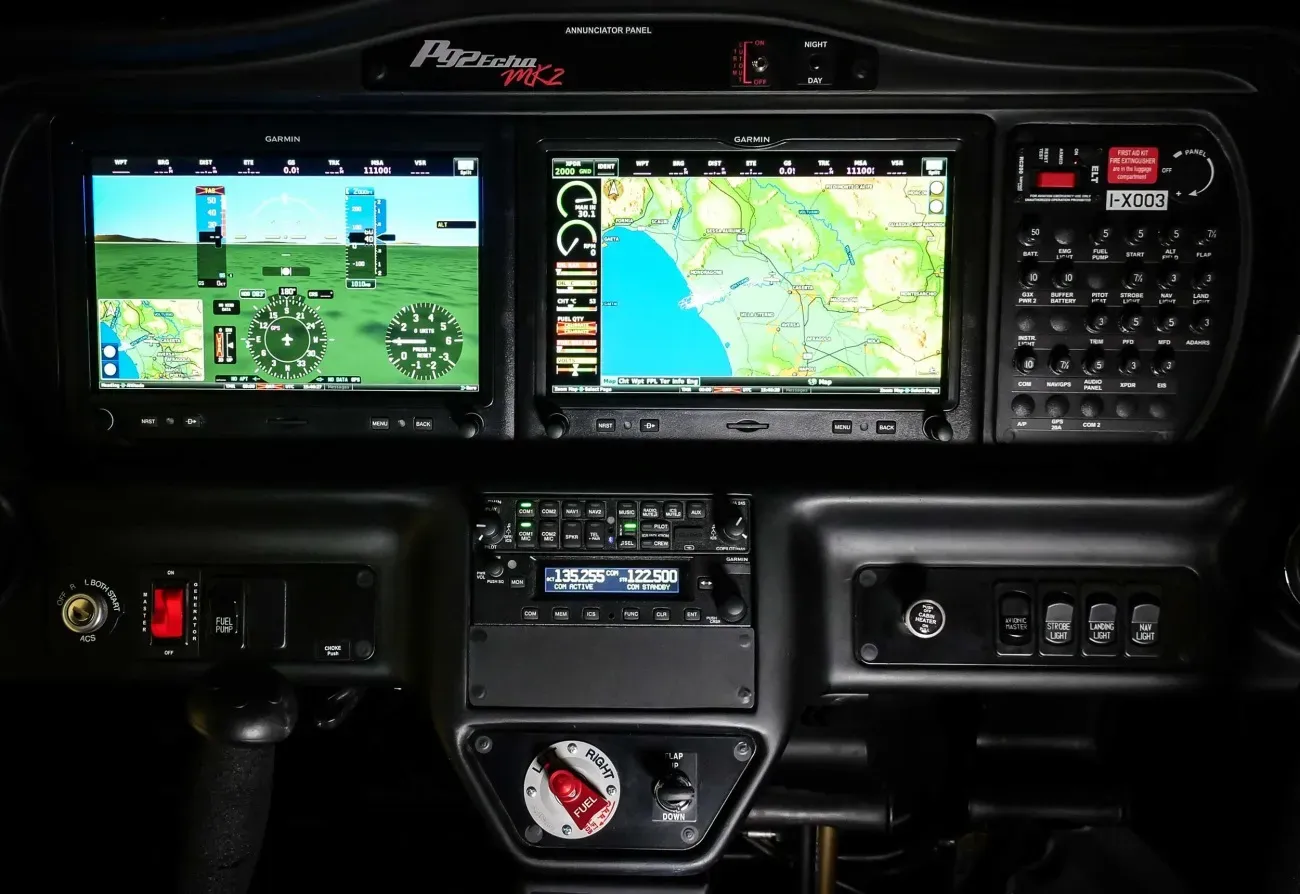

A aeronave mais popular da TECNAM desde o seu lançamento em 1994, o P92 de asa alta e dois lugares sempre esteve vários passos à frente de seu tempo. A versão de hoje, o P92 Echo Mk-II, apresenta tecnologia avançada, painel digital Garmin G3X Touch, asas e superfícies de comando em alumínio e fuselagem em materiais compostos, mantendo as mesmas qualidades de vôo agradáveis que lhe renderam a reputação de um avião seguro e fácil de pilotar.
P-92 Echo MK-II
Ver mais detalhes abaixo..
Class Avaliable
Exterior
Interior
Performance
Weight & Loading
Powerplant
Class Avaliable
US/LSA
This category can be available in countries who recognise the US/LSA category/class.
ULM
This category can be available in countries who recognise the ULM category/class following their local specifications & requirements.
ULM 600 KG
Approved in Germany under DULV standards for 600kg ULM.

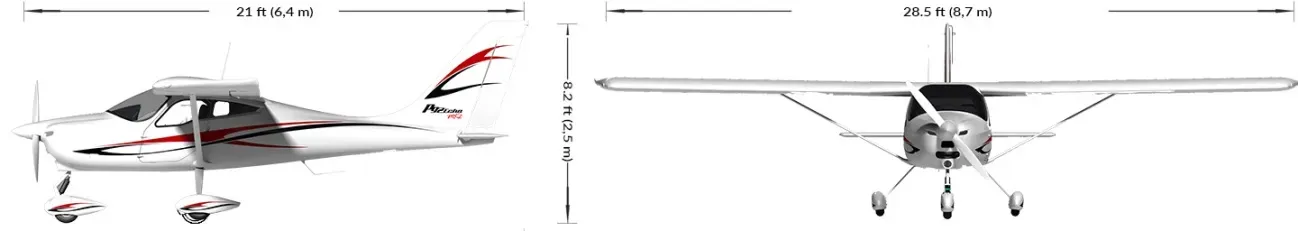

Exterior
Length | 21 ft (6,4 m) |
Height | 8.2 ft (2,5 m) |
Wingspan | 28.5 ft (8,7 m) |
Dihedral | 1.5° |

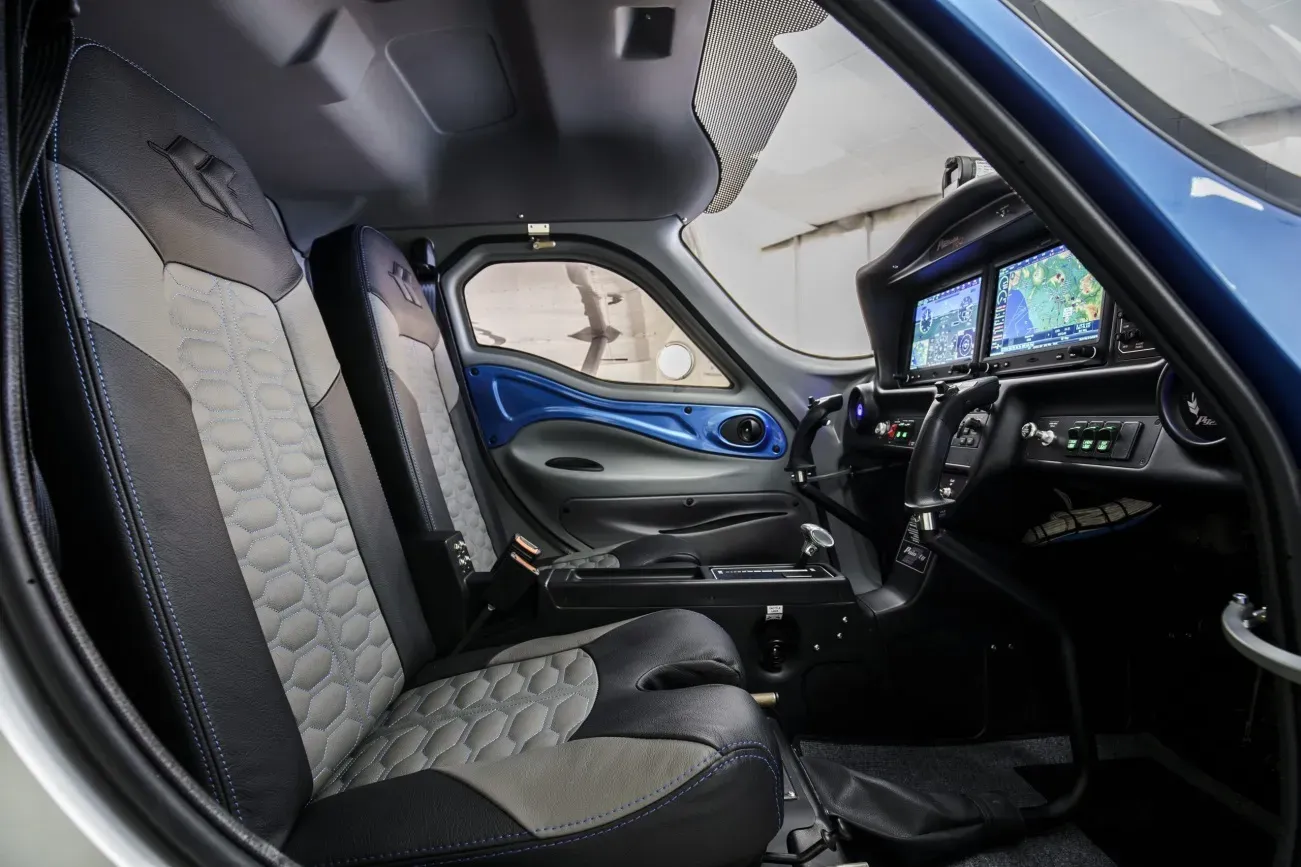

Interior
Main Door Width | 33 in (841 mm) |
Main Door Height | 34 in (861 mm) |
Cabin Width | 46.06 in (1.17 m) |
Cabin Length | 60.63 in (1.54 m) |
Cabin Height | 44.88 in (1.14 m) |
Max Seating capacity | 2 |
Performance
Max cruise speed | 115 kts (213 km/h) |
Stall Speed (Flaps Down Power Off) | 35 kts (64 km/h) |
Max Operating Altitude | 14000 ft (4267 m) |
Take off run | 459 ft (140 m) |
Take off distance | 886 ft (270 m) |
Rate of climb | 1220 ft/min (6.2 m/sec) |
Landing Run | 450 ft (137 m) |
Landing Distance | 910 ft (277 m) |
Range | 430 NM (796 km) |
Weight & Loading
Maximum Take Off Weight | 1.320 lb (600 kg) |
Empty Weight, Standard | 814 lb (369 kg) |
Useful Load | 506 lb (231 kg) |
Baggage allowance | 44 lb (20 kg) |
Fuel tank capacity | 2 x 11.8 US Gal (2 x 45 lt |
Powerplant
Engine Manufacturer | ROTAX 912 ULS |
Engine Power | 100 HP |
Propeller | Sensenich, 2 Blade Fix |
Fuel Consumption | 4.5 USG/h (17 lt/h) |
Fuel Type | Mogas and Avgas |
